Anhang I
Steckerbelegung der Ein-/Ausgabe Anschlüsse
Dieser Anhang soll Ihnen zeigen, wie welches Gerät wo an den COMMODORE 64 angeschlossen werden kann.
| 1 | Steuereingänge für Spiele |
| 2 | Modul-Steckplatz |
| 3 | Audio/Video |
| 4 | Serielle E/A (Disk/Drucker) |
| 5 | Kassette |
| 6 | User Port |
Control Port 1
| Pin | Signal | Bem. |
|---|---|---|
| 1 | JOYA0 | |
| 2 | JOYA1 | |
| 3 | JOYA2 | |
| 4 | JOYA3 | |
| 5 | POT AY** | |
| 6 | BUTTON A/LP* | |
| 7 | +5V | MAX. 100mA |
| 8 | GND | |
| 9 | POT AX** |
Control Port 2
| Pin | Signal | Bem. |
|---|---|---|
| 1 | JOYB0 | |
| 2 | JOYB1 | |
| 3 | JOYB2 | |
| 4 | JOYB3 | |
| 5 | POT BY** | |
| 6 | BUTTON B | |
| 7 | +5V | MAX. 100mA |
| 8 | GND | |
| 9 | POT BX** |
*) Button = Feuerknopf am Joystick
LP = Light pen
**) Paddle Potentiometer

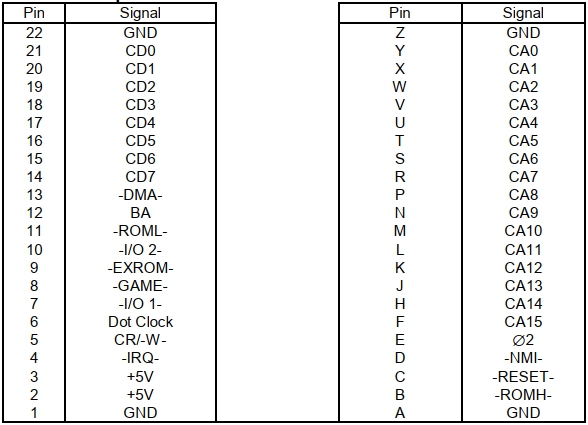

Modul-Steckplatz
Audio/Video
| Pin | Signal |
|---|---|
| 1 | LUMINANCE |
| 2 | GND |
| 3 | AUDIO OUT |
| 4 | VIDEO OUT |
| 5 | AUDIO IN |
| 6 | CROMINANZ |
| 7 | O. BELEGUNG |
| 8 | O. BELEGUNG |
Serielle E/A
| Pin | Signal |
|---|---|
| 1 | SERIAL -SRQIN- |
| 2 | GND |
| 3 | SERIAL ATN IN/OUT |
| 4 | SERIAL CLK IN/OUT |
| 5 | SERIAL DATA IN/OUT |
| 6 | RESET |
Cassette
| Pin | Signal |
|---|---|
| A-1 | GND |
| B-2 | +5V |
| C-3 | CASSETTE MOTOR |
| D-4 | CASSETTE READ |
| E-5 | CASSETTE WRITE |
| F-6 | CASSETTE SENSE |

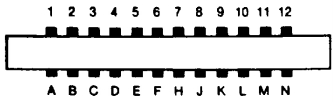

User Port
| Pin | Signal | Bem. |
|---|---|---|
| 1 | GND | |
| 2 | +5V | MAX. 100mA |
| 3 | RESET | |
| 4 | CNT1 | |
| 5 | SP1 | |
| 6 | CNT2 | |
| 7 | SP2 | |
| 8 | PC2 | |
| 9 | SER. ATN IN | |
| 10 | 9 VAC | MAX. 100mA |
| 11 | 9 VAC | MAX. 100mA |
| 12 | GND | |
| A | GND | |
| B | FLAG2 | |
| C | PB0 | |
| D | PB1 | |
| E | PB2 | |
| F | PB3 | |
| H | PB4 | |
| J | PB5 | |
| K | PB6 | |
| L | PB7 | |
| M | PA2 | |
| N | GND |
